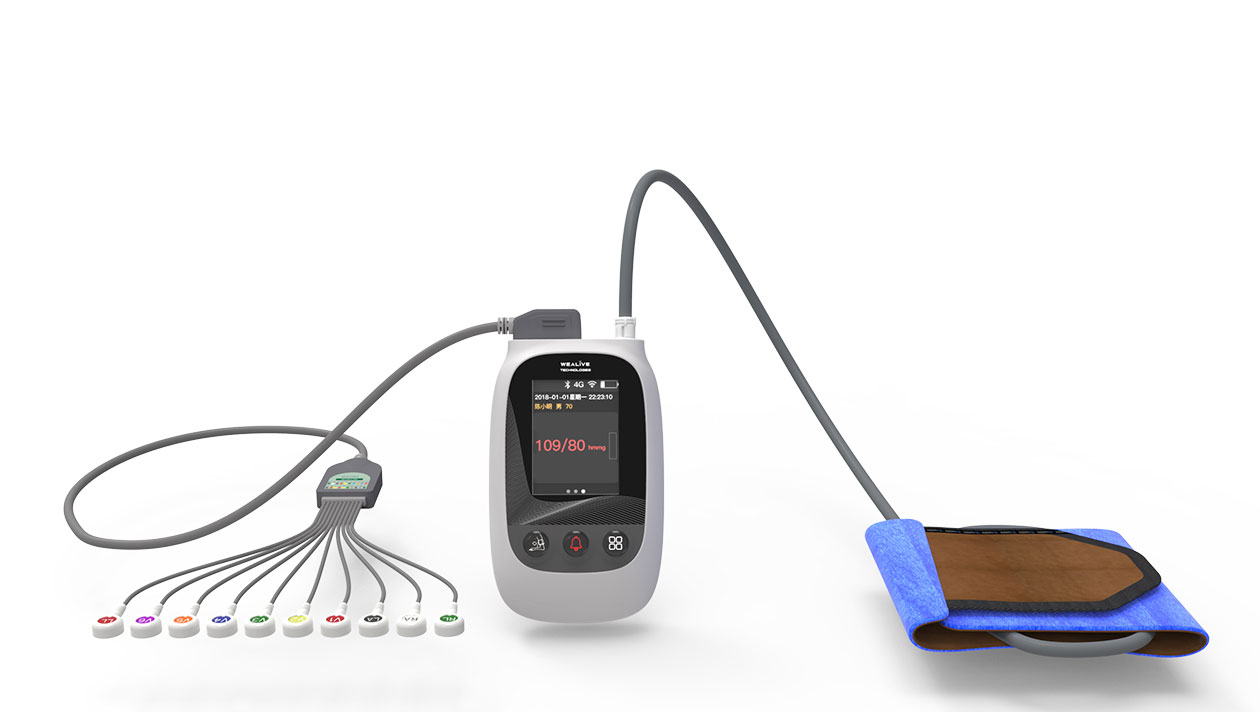

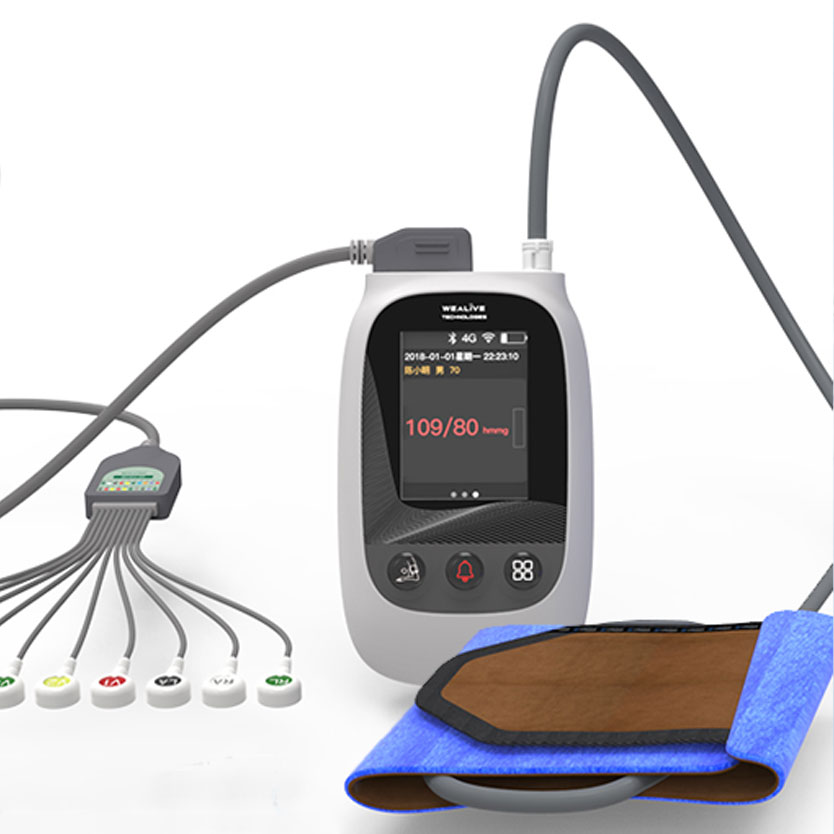

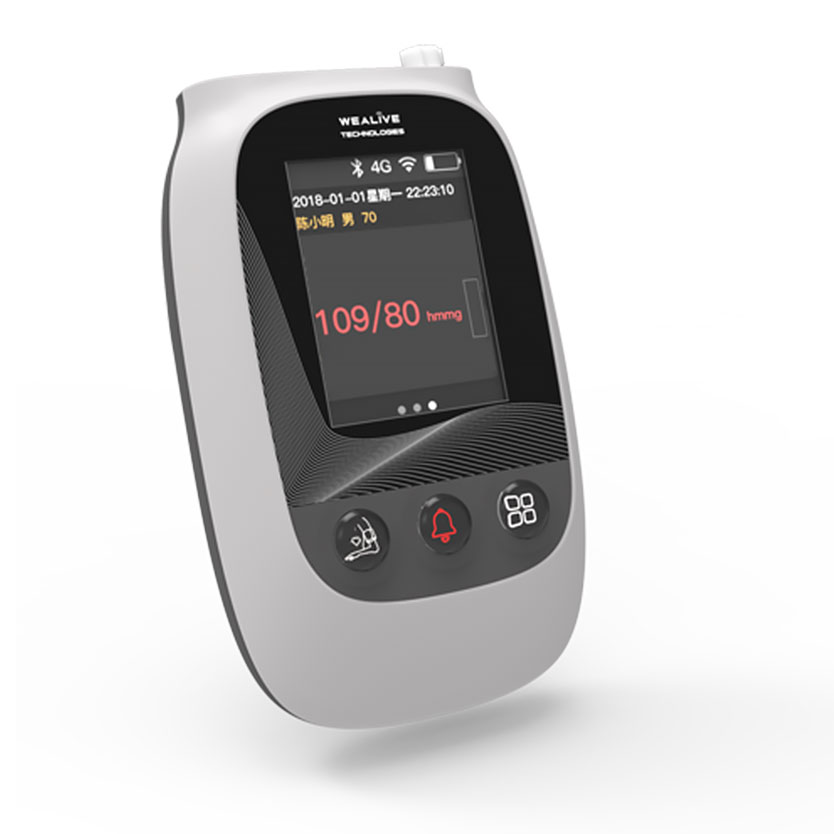

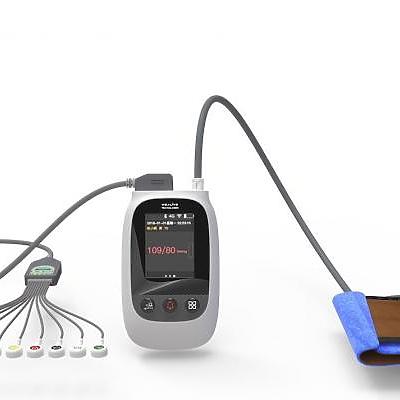

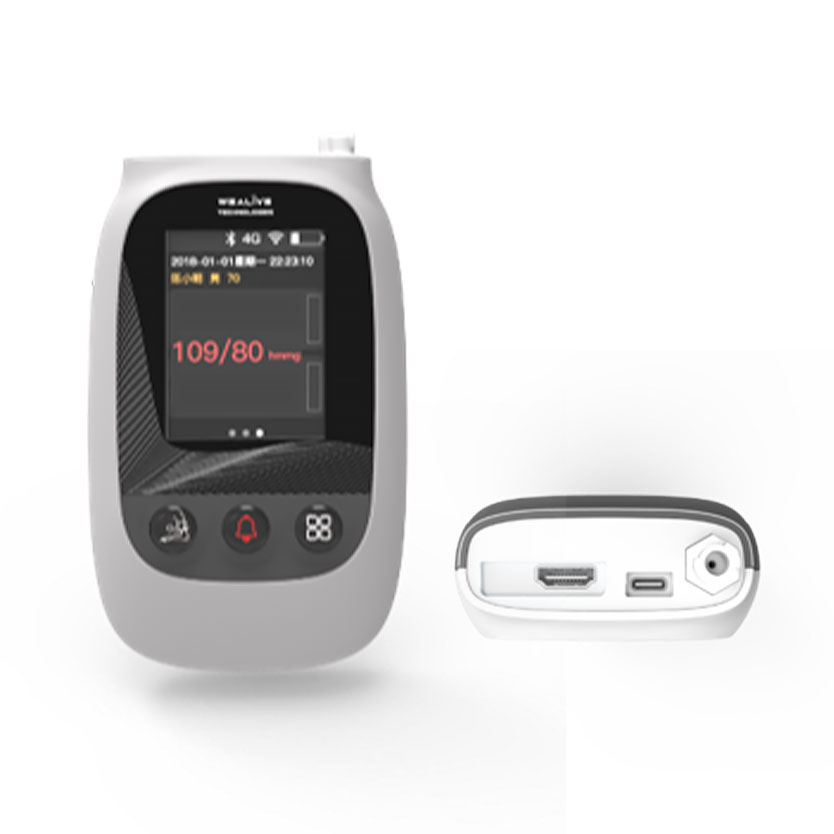

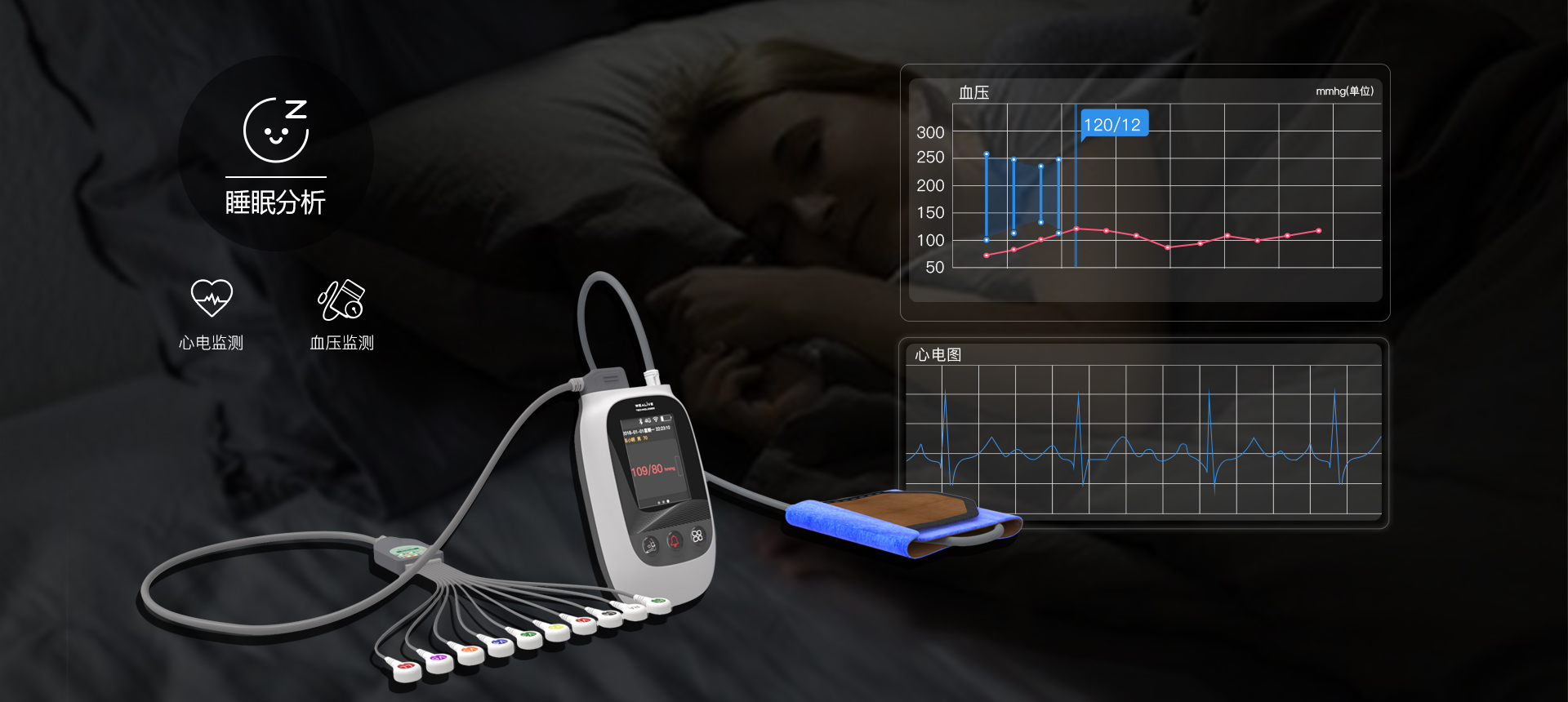

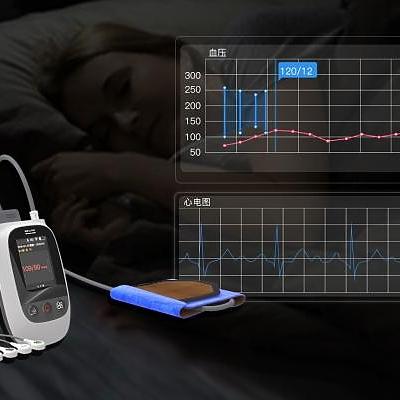

Dynamic ECG blood pressure recorder, dynamic vital signs monitor

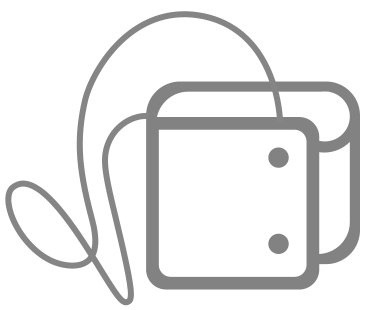

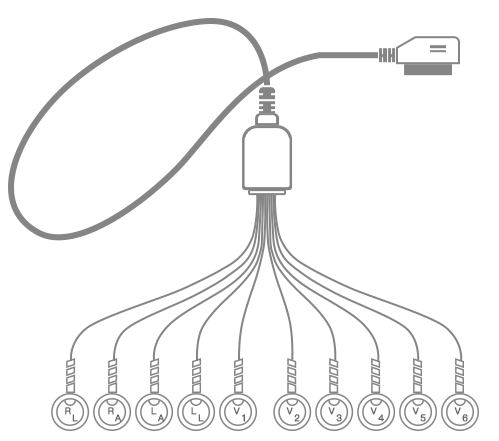

Packing list

Acquisition accuracy and performance

ECG part:

• Number of channels: 12 leads
• Recording method: Continuous recording of all information, at least 24 hours
• Frequency response: 0.05~55 Hz Sampling rate: 10000Hz
• Sampling precision: 32 bits
• Input range: 0.05~10 mV
• Pacing detection: supported

Blood pressure part:

• Measuring range: Systolic blood pressure: 40~260mmHg Diastolic blood pressure: 20~210mmHg
• Pulse rate: 40~220BPM
• Accuracy: Blood pressure: ≤±3mmHg
• Overall system effectiveness: meets the requirements of 4.5.5 in YY0670-2008
• Maximum cuff pressure: When the cuff pressure exceeds 40.0 kPa (300mmHg), the solenoid valve should be automatically opened to deflate; the cuff pressure should be above 2 kPa (15mmHg) for less than 3 minutes.
• Deflation: When the valve of the inflation system is fully opened and deflated quickly, the time for the pressure to drop from 34.67 kPa (260mmHg) to 2 kPa (15mmHg) shall not exceed 10 seconds.

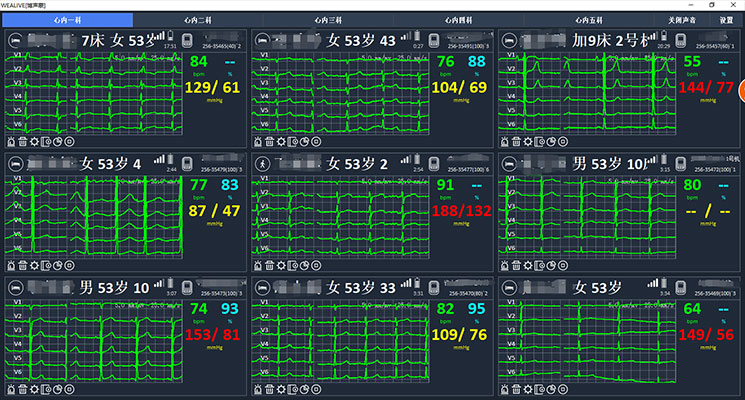

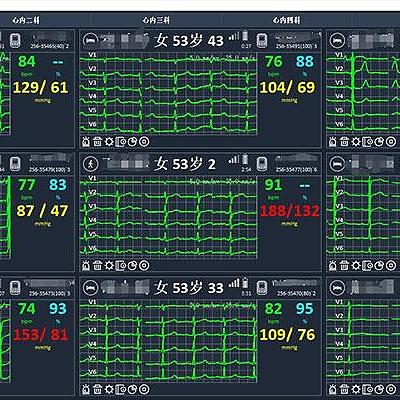

Analysis software compatible

• Win2000/WinXP/Win2003/Vista/Win7/Win8/Win10/Win11
• Apple Mac

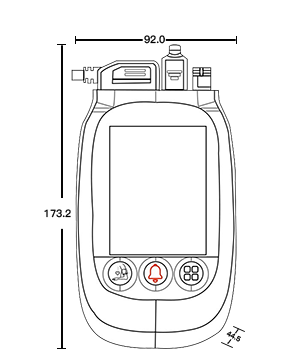

Dimensions and weight

• Dimensions: 92.0*173.2*44.5 mm
• Weight: 655 g, including battery

Battery and endurance

• Lithium battery 3.7V 9200mAh, can work continuously for 24 hours
